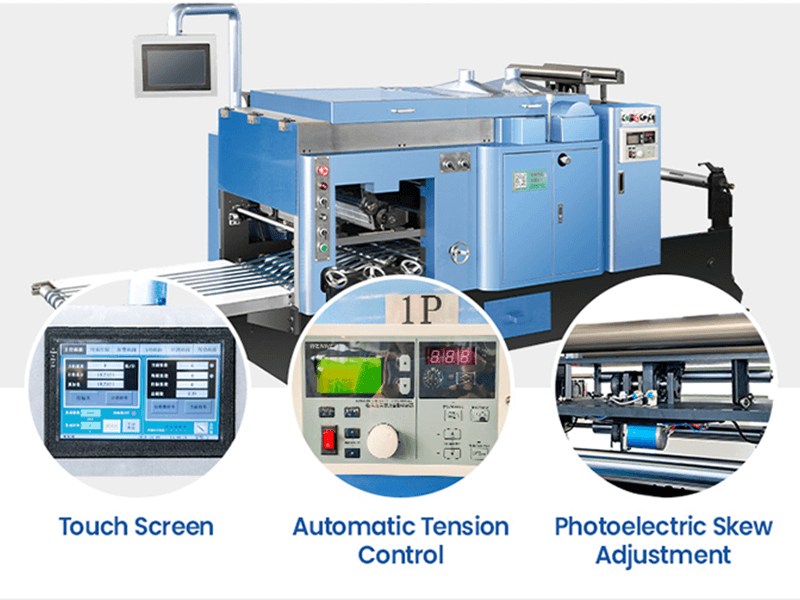

Z Paper Folding Machine For Paper Void Filling Machine
Our fan-folded paper perforation machine can produce the void filling packs. Void Fill is a paper filler material, used to fill the free space in the shipping carton and lock products in place. When items are prevented from moving during transit, the chances of breakage go down. A paper-based filler offers excellent physical properties in terms of absorbing shocks and protecting sensitive products, and is also more sustainable than plastic packaging.
15years experience
Factory direct
Stable working system.
PLC correction
Automatic tension control system
High precision perforation
- Found
- Xiamen
- Information
- Video
Machine Introduction
The fanfold paper folding perforating machine convert the fan-folded pack bundles for paper void-fill machines. These fan-folded packs of paper offer easy handling and storage and a minimum time for machine loading. For use with the Ranpak brand like FillPak Trident, FillPakSL, FillPak TTC, FillPak TT, FillPak M, Storopack brand PAPERplus SHOOTER, Sealed Air brand asFil Jet,FasFil Jr, FasFil 1500, FasFil M, FasFil Mini, and FasFil Jr. etc Smart void fill machines. Suitable for side and top void filling.
Product Specification
| 1 | Max. unwinding Width | 500mm |
| 2 | Max. unwinding Diameter | 1000mm |
| 3 | Paper Weight | 40-150g/Square Meter |
| 4 | Runing Speed | 5-200m/min |
| 5 | Lateral Folding Line | 11 Inch (2 folds or 3 folds, others are optional) |
| 6 | Folding Length | 8-15 Inch (11 inches as standard, others are optional) |
| 7 | Unwinding Shaft | 3 Inches of Air Swelling the Shaft |
| 8 | Machine weight | 1800kg |
| 9 | Size(L*N*G): | 3700+900/layer*1100*1200 |
| 10 | Dimension(L*W*H) | 3700+1100/roll*1100*1300mm |
| 11 | Power supply | 380V 3Phase 5 wires |
Our Factory
Precise sales, think what you think
By inspecting the global paper bag production status, comprehensively considering the suggestions of sustainable packaging industry, according to the actual needs of different customers, we design and produce a variety of configuration models, allowing customers to choose flexibly.
Excellent R& D management
We have an excellent R& D design team and excellent management talents in the packaging machine industry. We fully understand the actual needs of the packaging industry, ensuring that every piece of equipment we manufacture can be affirmed by customers and create greater benefits.
After-sale guarantee
Provide customers with comprehensive and timely after-sales service and a sense of service in the end.
Certifications
